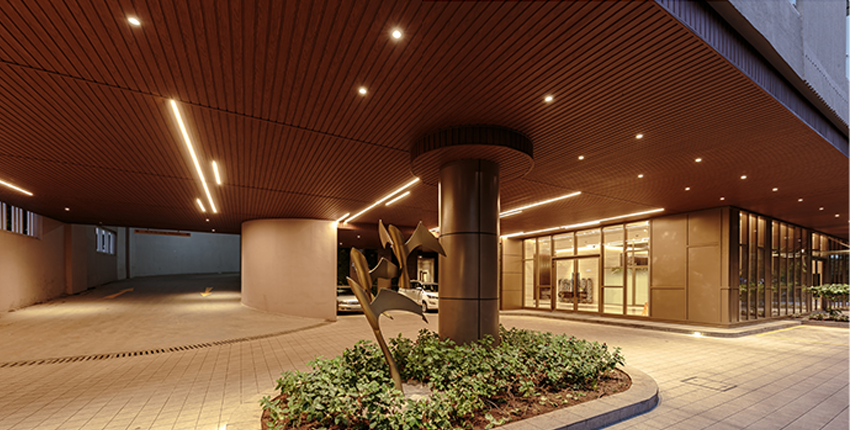

Soffit Panels
Meraki Soffit Panels are designed for exterior ceiling and canopy applications requiring lightweight construction and long term durability. Engineered for waterproof and fire resistant performance, these panels combine structural stability with easy installation and interlocking design.
Backed by a 10 year warranty, Soffit Panels offer impact resistance and low maintenance performance across covered exterior environments.
Product Specifications
| Specification |
Details |
| Total Shades |
9 |
| Total Mould Design |
3 |
| Total Trim |
5 |
| Thickness |
1.2mm (± 10%) |
| Wall Thickness |
12mm |
| Length |
10 ft. (Any length can be customised on order) |
| Packaging details |
1 Box = 10 Pcs (weight/piece – 2.4-2.5kg) (weight/box – 24-25kg) |
Finishes and collection
| Series |
Mould |
Width |
Panel Area (10ft) Length |
Covered Area (10ft) Length |
| 7100 |
Soffit |
340mm |
11.20 Sq. ft |
9.88 Sq. ft |
| 7200 |
Quadron |
288mm |
9.49 Sq. ft |
8.23 Sq. ft |
| 7300 |
Dublin |
230mm |
7.56 Sq. ft |
6.06 Sq. ft |
| Trim |
Qty. |
| Starter trim |
1 box * 20 pcs |
| J trim |
1 box * 20 pcs |
| T trim |
1 box * 10 pcs |
| Inside trim |
10 pcs |
| Outside trim |
10 pcs |

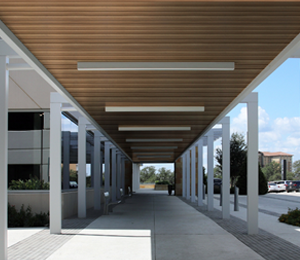

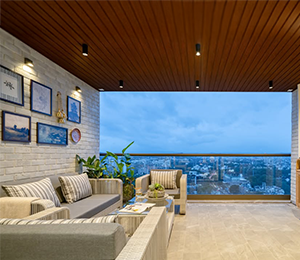

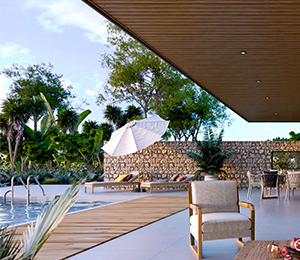

Applications
